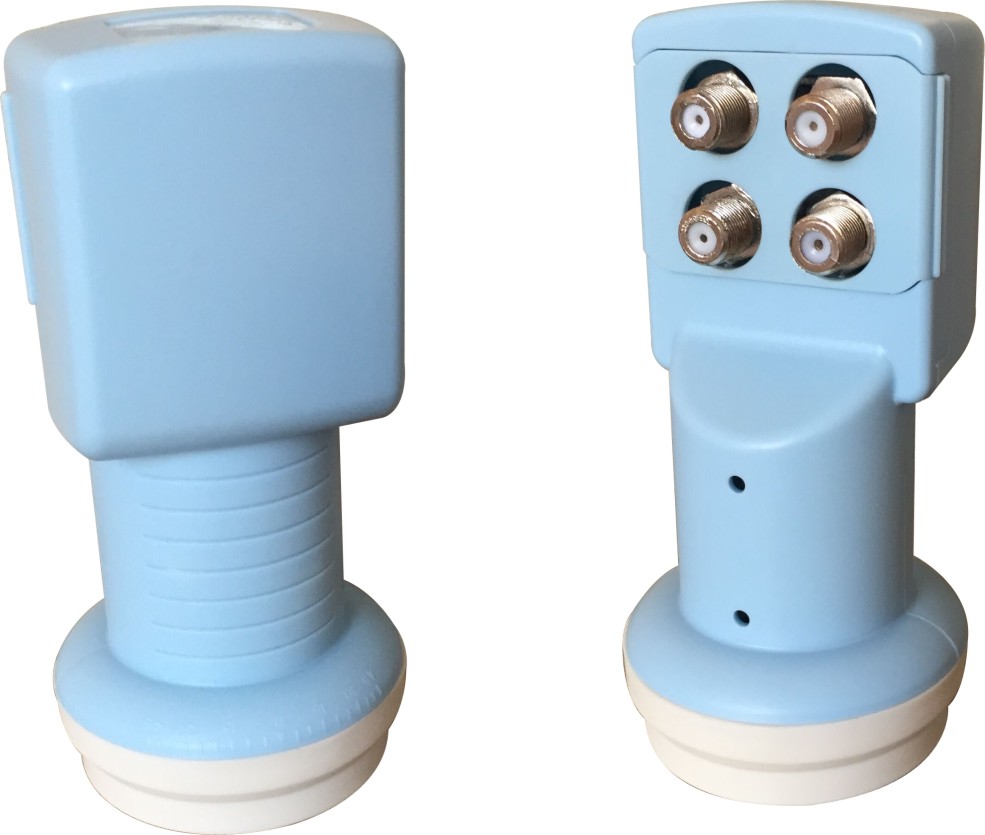

UNIVERSAL QUAD LNBF

Product No.:20151119182655

Description: UNIVERSAL LNBF QUAD

Introduction

Universal QUAD LNBF

  Low Band Hi Band
1.Input Frequency Range 10.7~11.7 GHz 11.7~12.75 GHz
2.Output Frequency Range 950~1950 MHz 1100~2150 MHz
3.L.O. Frequency  9.75GHz 10.6 GHz
4.Noise Figure 0.9 dB (Typ.)
5.Input Connector CR120 Circular Waverguide
6.Cross Pol. Isolation 20 dB (Min.)   25 dB (Typ.)
7.Conversion Gain 50 dB (Min.)   62 dB (Max.)
8.Gain Flatness ±0.5 dB/27 MHz
9.L.O. Frequency Stability  (25℃) ±1 MHz
                            (-30℃~60℃) ±3 MHz
10.L.O. Phase Noise         (1 KHz Offset) -60 dBc/Hz
                            (10 KHz Offset) -80 dBc/Hz
                            (100 KHz Offset) -100 dBc/Hz
11.Image Rejection 40 dB (Min.)
12.Output power 0 dB (Min.)
(at 1 dB Gain compression Point)
13.Harmonic Distortion On InBand (1700 MHz) -60 dBm (Max.)
14.Output Return Loss 7.5 dB
15.Output Connector 75 ohm F type (female)
16.D.C. Supply Voltage 11.5~19 V
17.D.C. Current Consumption 300 mA (Max.)
18.Polarity Switching Voltage Vertical: 11.5~14.2 V     Horizontal:15.8~19 V
19.Band Switching          Low Band 0 KHz
                           Hi Band 22 KHz±4 KHz continuous tone signal**
