Octo LNBF

Product No.:KOU18L

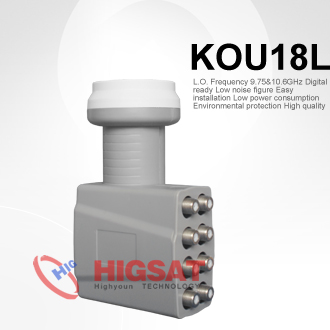

Description: Octo LNBF

Introduction







Low Band

Hi Band

1.Input Frequency Range

10.711.7 GHz

11.712.75 GHz

2.Output Frequency Range

9501950 MHz

11002150 MHz

3.L.O. Frequency

9.75GHz

10.6 GHz

4.Noise Figure

0.9 dB (Typ.)

5.Input Connector

CR120 Circular Waverguide

6.Cross Pol. Isolation

20 dB (Min.)   25 dB (Typ.)

7.Conversion Gain

50 dB (Min.)   62 dB (Max.)

8.Gain Flatness

±0.5 dB/27 MHz

9.L.O. Frequency Stability  (25)

±1 MHz

                      (-30℃~60)

±3 MHz

10.L.O. Phase Noise   (1 KHz Offset)

-60 dBc/Hz

                     (10 KHz Offset)

-80 dBc/Hz

                    (100 KHz Offset)

-100 dBc/Hz

11.Image Rejection

40 dB (Min.)

12.Output power

0 dB (Min.)

(at 1 dB Gain compression Point)

13.Harmonic Distortion On InBand (1700 MHz)

-60 dBm (Max.)

14.Output Return Loss

7.5 dB

15.Output Connector

75 ohm F type (female)

16.D.C. Supply Voltage

11.519 V

17.D.C. Current Consumption

300 mA (Max.)

18.Polarity Switching Voltage

Vertical: 11.514.2 V

Horizontal:15.819 V

19.Band Switching

LowBad

HiBand



0 KHz

22 KHz±4 KHz continuous tone signal**
