Ku -Band LNBF

Input Frequency Range

10.7~12.75GHz

Output Frequency Range

950~2150MHz

L.O. Frequency

9.75&10.6GHz

Noise Figure

0.7dB(Typ.)   1.1dB(Max)

Conversion Gain

55dB (Typ.)    48dB(Min)

Gain Flatness

±4dB Over Band  ±1dB/54MHz

L.O. Frequency Stability

±1.0MHz @25℃
±3.0MHz@-40℃~ +60℃

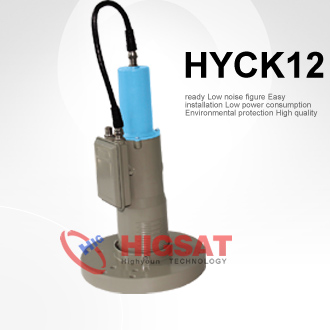

 C –Band  LNBF( diseqc switch inside)

Input Frequency Range

3.4~4.2GHz

Output Frequency Range

950MHz～1750MHz

L.O. Frequency

5150MHz

Noise Figure

35±5°K

Conversion Gain

65dB(Typ)

Gain Flatness

±1.0dB/36MHz

L.O. Frequency Stability

±1.0MHz@25℃
±2.5MHz@-40℃~ +60℃
