CKU LNBF(LO:11.3G)
Product No.:2013311162019 Description: C/KU LNBF |

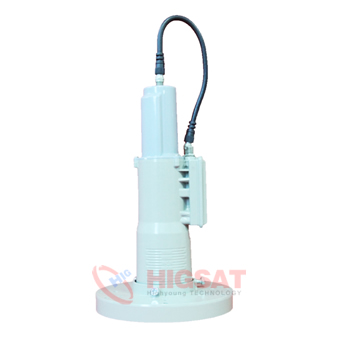

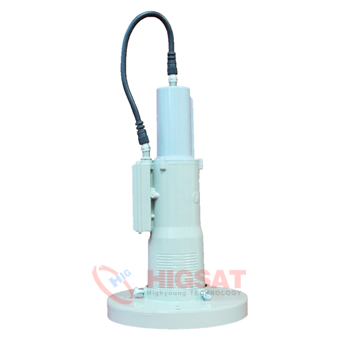

C/KU LNBF
Item |
Specification |
Item |
Specification |
|
Ku -Band LNBF |
C -Band LNBF |
|||
|
12.25~12.75GHz |
|
3.4~4.2GHz |
|
|
950~1450MHz |
|
950MHz~1750MHz |
|
L.O. Frequency |
11300MHz |
L.O. Frequency |
5150MHz |
|
Noise Figure |
0.7dB(Typ.) 1.1dB(Max) |
Noise Figure |
35±5°K |
|
Conversion Gain |
55dB (Typ.) 48dB(Min) |
Conversion Gain |
65dB(Typ) |
|
Gain Flatness |
±4dB Over Band ±1dB/54MHz |
Gain Flatness |
±1.0dB/36MHz |
|
L.O. Frequency Stability |
±1.0MHz @ |
L.O. Frequency Stability |
±1.0MHz@ |
