HY-M4

Product No.:HY-M4

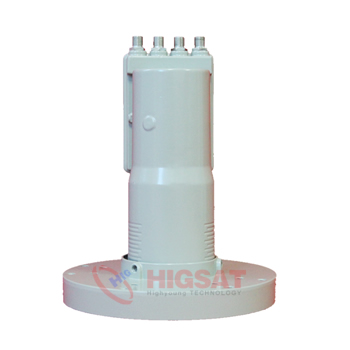

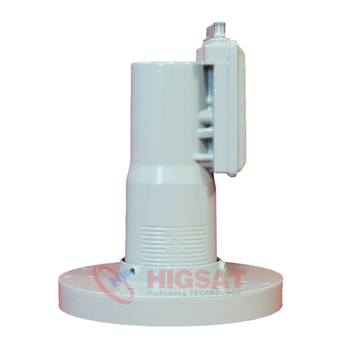

Description: C BAND Four output LNBF
Introduction

C BAND Four output LNBF
1.Input Frequency Range 3.4～4.2GHz
2.Output Frequency Range 950～1750MHz
3.L.O. Frequency Range 5.15GHz
4.F/D Ratio 0.28～0.42(Adjustable)
5.Input Reflector Type Prime focus
6.Cross Pol. Isolation 20 dB(Typ.)
7.Noise temperature 15 oK
8.Conversion Gain 65dB(Typ.)
9.Gain Flatness ＋1 dB/36 MHz
10.L.O. Frequency Stability +1.0 MHz @25℃           +2.5 MHz @(-30℃～+60℃)
11.L.O. Phase Noise (1 KHz Offset)                                            -70 dBc/Hz @10 KHz
                    (10 KHz Offset) -85 dBc/Hz @100 KHz
                    (100 KHz Offset) -105 dBc/Hz @1 MHz
12.Image Rejection 45 dB (Min.)
13.Output power 0 dB (Min.)
(at 1 dB Gain compression Point)
14.Output Return Loss 7.5 dB
15.Output Connector 75 ohm F type (female)
16.D.C. Supply Voltage 12～24VDC
17.D.C. Current Consumption 150 mA (max.)
18.Polarity Switching Voltage Vertical: 11.5～14.5 VDC   Horizontal:15.8～19 VDC
19.Operating Temperature -40℃～+60℃
