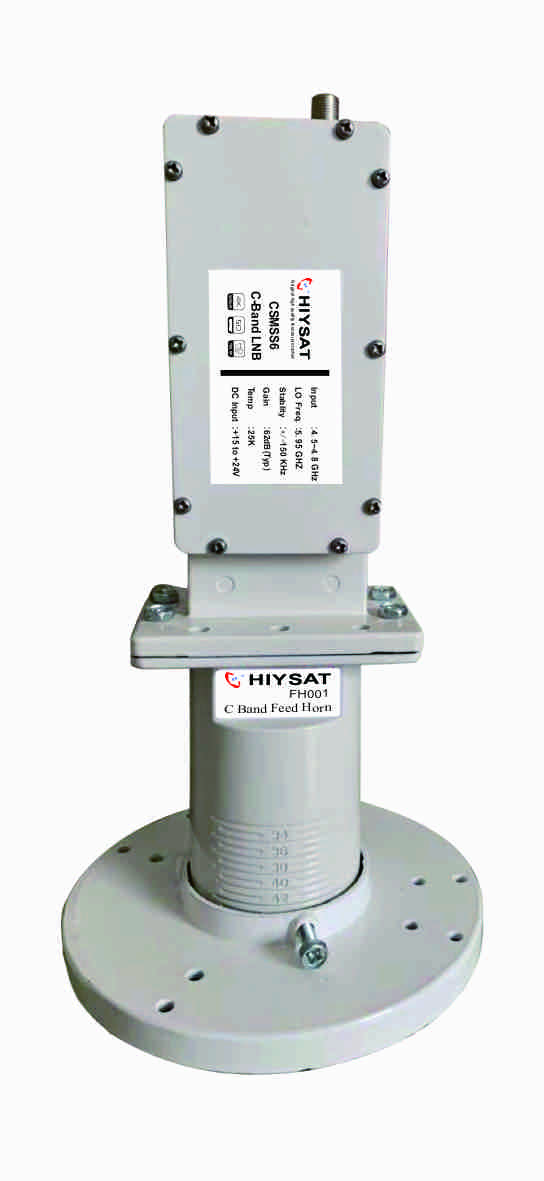

C BAND LNB/LNA

Product No.:2016514195749

Description: Model Frequency range SM-CSM 3.4 - 4.2 GHz SM-4548 4.5 - 4.8 GHz Mechanical Drawing Specifications Parameter Specification Noise temperature (@+25'C) 30‘K max. Input VSWR 2.2 : 1 max. Output VSWR 2.2 : 1 max. Gain atness 1dB gain compression point(@ 1GHz) Output impedance Power supply Required current Operating temperature Storage temperature Relative humidity Input waveguide ange Output connector Weight 4 dBp-p max. +5 dBm min. 50 ohms +12 to +24V DC 150 mA max. Power connector MS3112E10-6P -4

Introduction
Specifications
Model Frequency range
SM-CSM 3.4 - 4.2 GHz
SM-4548 4.5 - 4.8 GHz
Parameter Specification
Noise temperature (@+25'C) 30‘K max.
Input VSWR 2.2 : 1 max.
Output VSWR 2.2 : 1 max.
Gain atness
1dB gain compression point(@ 1GHz)
Output impedance
Power supply
Required current
Operating temperature
Storage temperature
Relative humidity
Input waveguide ange
Output connector
Weight
4 dBp-p max.
+5 dBm min.
50 ohms
+12 to +24V DC
150 mA max.
Power connector MS3112E10-6P
-40􀂍 to +60􀂍
-40􀂍 to +80􀂍
0% to 95% RH
WR- 229
SMA type female
600 g
